Green xLED Bundle

The Green Bundle includes three great implants, one of which is our new green xLED HF implantable field detector. Also included is the venerable NExT implant, which packages two very popular chips inside a single implant. The VivoKey Spark 2 is also included, and is the world’s only cryptobionic upgrade, linking you to the VivoKey service and other VivoKey community members.

  • NExT – NTAG216 13.56MHz NFC Type 2 ISO14443A RFID
  • NExT – T5577 125kHz Chip Emulator
  • Spark 2 – 13.56MHz NFC Type 4 ISO14443A RFID
  • Green xLED HF – 13.56MHz Field Detector Implant
  • Also includes tons of accessories!!!

More Details X-Series FAQ Partner Map

$199.00

More Details

WARNING This kit definitely contains dangerous things. While the chip implants included in this kit have undergone several quality checks during manufacture and hredas been put through a battery of tests, it has not been certified by any government regulatory agency for implantation or use inside the human body. Use of the devices in this kit are strictly at your own risk.

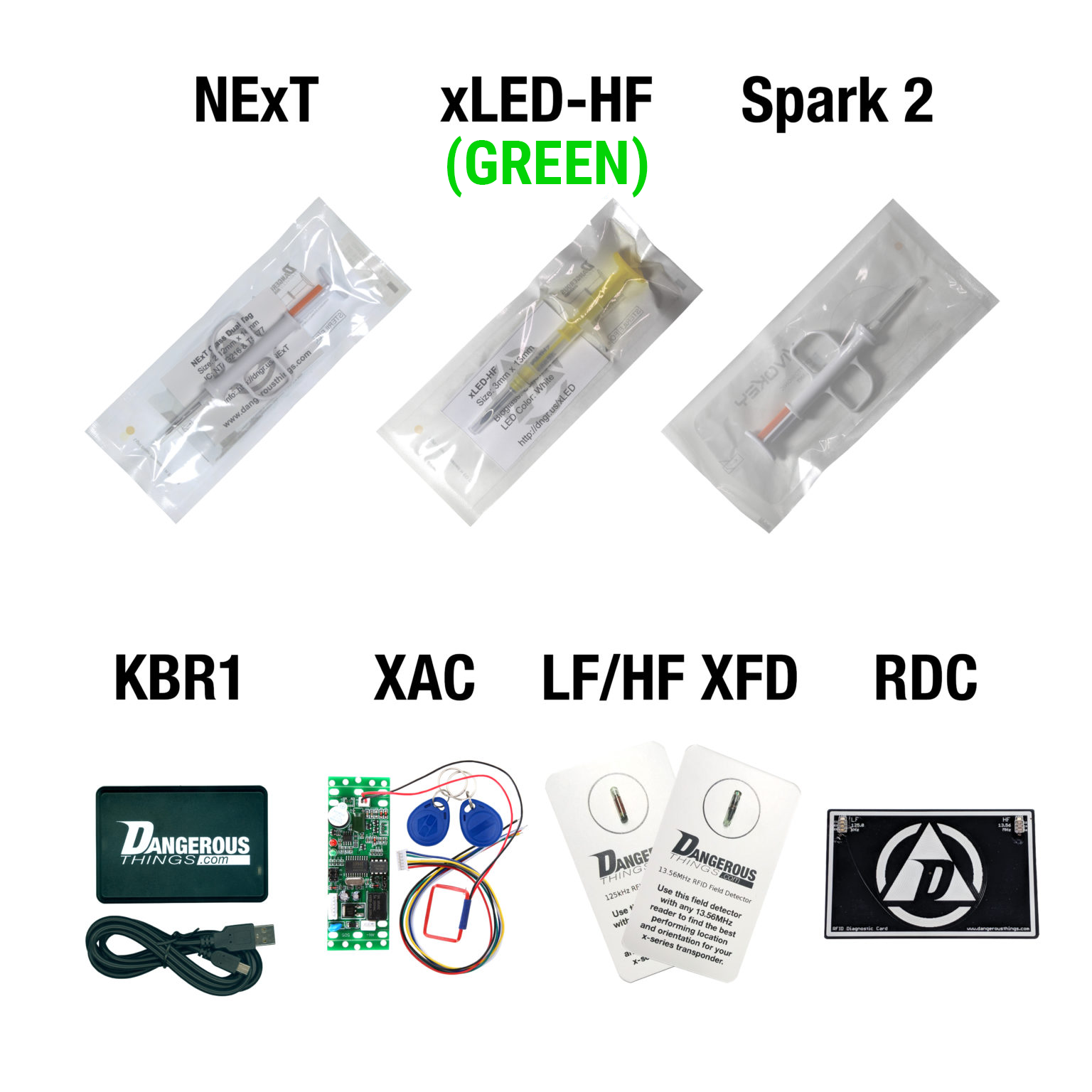

Green Bundle

  • *1 sterile injector assembly, pre-loaded with a green xLED HF implant
  • *1 sterile injector assembly, pre-loaded with a NExT dual chip implant
  • *1 sterile injector assembly, pre-loaded with a VivoKey Spark 2 chip implant
  • 6 single use ChloraPrep antiseptic wipes
  • 3 sterile gauze pads for post-injection wound care
  • 3 sterile expandable-fabric adhesive bandage
  • 3 pair of non-sterile, non-latex procedure gloves

*All implants are tested for function before loading into the injector assemblies, and the whole injector assembly with chip inside is EO gas sterilized.
NExT Chip Implant
The NExT is a 2mm x 14mm cylindrical chip implant encapsulated with robust Schott 8625 biocomaptible soda-lime glass. The NExT includes two chip types inside a single implant! It contains both a 13.56MHz NTAG216 NFC chip and a 125kHz T5577 RFID chip. The NTAG216 NFC chip inside the NExT works with NFC capable smartphones, certain commercial access control systems and door locks, and USB contactless ISO14443A readers. The T5577 RFID chip inside the NExT is a 125kHz emulator that can be programmed to behave like many different types of common 125kHz low frequency chips, including EM41xx, EM4200, HID 1326 ProxCard II, HID 1346 ProxCard III, Indala (and more!) access cards and keyfobs. Check out our video explaining how the T5577 works.

Green xLED HF Implant
The xLED HF is a 3mm x 13mm cylindrical implant encapsulated with robust Schott 8625 biocomaptible soda-lime glass. Inside is a 13.56MHz antenna coil and green LED which will shine brightly under the skin when brought close to a high frequency (HF) RFID or NFC reader coil. Like the X Field Detector, it can be used to show you how to properly orient and place your high frequency x-series implants to a reader.

Spark 2 Chip Implant
The VivoKey Spark 2 is a 2mm x 14mm cylindrical chip implant encapsulated with robust Schott 8625 biocomaptible soda-lime glass. The Spark 2 is a product designed and manufactured by VivoKey Technologies, makers of the only cryptobionic implants capable of performing strong cryptographic functions in vivo. The Spark is a 13.56MHz ISO14443A and NFC Type 4 compliant, readable by all NFC reader devices including all NFC capable smartphones and USB readers that are capable of reading ISO14443A chips. The Spark is plug and play! There is nothing to program, and it is cryptographically secure. It works with the VivoKey app to configure scan behavior and expand your capabilities.

Unlike other NFC implants, the VivoKey Spark 2 is not a simple NFC chip, it is a secure link to the future. With the Spark, you aren’t just upgrading yourself, you are becoming part of the most advanced cryptobionic community in the world and your new digital capabilities will keep expanding as the VivoKey platform grows. Welcome to the future.

Check here for more information on the Spark 2 and how it fits into the VivoKey ecosystem.

Bundle Extras

This bundle includes some additional goodies!

  • xEM Access Controller
  • KBR1 Wedge Keyboard Reader

The xEM Access Controller works with the T5577 chip in the NExT implant (programmed in EM mode only) and enables you to quickly build a simple access control project to open your room, house, or garage door with a wave of your hand.. or with a little more tinkering, unlock your car or even start your motorcycle ! Also included in this bundle is our KBR1 keyboard wedge reader , which acts as a USB keyboard that “types out” the UID or “serial number” of both the xM1 “magic” Mifare 1k chip or the NTAG216 chip inside the NExT implant, enabling a simple computer logon solution .

Field Detection Accessories

It can be tricky getting used to using your new upgrades. The small size and cylindrical antenna shape of these types of chip implants means getting them to read with standard readers or smartphones with NFC can take some getting used to. To help you discover the best way to get a read with whatever reader you’re trying to use your new implant with, every bundle comes with a collection of field detection accessories.

  • 125kHz X Field Detector
  • 13.56MHz X Field Detector
  • RFID Diagnostic Card

The X Field Detectors (XFD) are designed to operate just like chip implants, only instead of a chip they have an LED inside which will light up when you have found the correct location and orientation in which to present your chip implant to the reader. The RFID Diagnostic Card is a handy tool to keep in a wallet, and will tell you all about the frequency and duty cycles any readers you encounter in the wild.



A review of the RFID Diagnostic Card & X Field Detector devices



Important Things To Know

Please expand the sections below to read up on things like performance expectations, return policy, installation procedure, etc.

Chip Specifications
NExT Chip Specifications
The NExT chip contains two completely separate transponders in a single device. Each inductor coil antenna and chip in the NExT are specifically tuned to accommodate co-operation within the same device.

NExT Basic Specifications

  • Encased in 2.1mm by 14mm bioglass with non-toxic epoxy
  • Pre-tested and pre-loaded into sterile injection assembly
  • No “anti-migration” coating means easy removal/replacement

NExT 13.56MHz NTAG216 NFC Type 2 chip

  • 13.56MHz ISO14443A & NFC Type 2 compliant NTAG216 NFC chip
  • Full datasheet for the NXP NTAG216 RFID/NFC chip
  • 7 byte UID and 886 bytes of user read/write memory
  • 10 year data retention. Rated for 100k writes per memory block.

NExT 125kHz Atmel T5577 RFID emulator chip

  • 125kHz Atmel T5577 RFID emulator chip
  • Full datasheet for the Atmel ATA5577 chip
  • Can emulate EM41xx, EM4200, HID ProxCards, AWID, Indala, and more!

VivoKey Spark 2 Chip Specifications

  • 13.56MHz ISO14443A & NFC Type 4 compliant RFID chip
  • AES128 encryption function with 2 byte payload salt
  • Encased in 2.1mm by 14mm bioglass with non-toxic epoxy
  • Pre-tested and pre-loaded in sterile injection assembly

Green xLED HF Specifications

  • Green LED tuned to 13.56MHz cylindrical antenna coil
  • Encased in 3mm by 13mm bioglass with non-toxic epoxy
  • Pre-tested and pre-loaded in sterile injection assembly
Testing process, return policy, lifetime warranty
Testing Process
Our x-series chips come pre-loaded inside injector systems with steel needles and cannot typically be read while inside the needle. Because of this, we perform a full test on every x-series tag before it is loaded into the injector assembly and sterilized. We have also conducted several tests on our x-series chips and cataloged those tests here.

Return Policy
We offer a 30-day money back guarantee! Read all about it on our return policy page.

Lifetime Warranty
If you do purchase one of our products and experience a failure, we offer a full lifetime warranty on all of our products. You will need to return the product for testing and analysis, and if it is malfunctioning, we will ship you a replacement free of charge. Read all about it on our warranty policy page.

Practical read range/performance expectation
Passive RFID and NFC chips are magnetically coupled devices that power themselves and communicate data over a shared magnetic field the reader generates. This means their effective read range and performance depends entirely on how well the antenna coils of both the chip and reader couple with each other. This typically means the shape, size, and orientation of both antennas must be complimentary.

Because our x-series chips have a cylindrical coil antenna and most readers have a flat spiral plane antenna, correctly positioning your x-series chip is critical. This is why we include our RFID Diagnostic Card and X Field Detector! Watch this video;

A review of the RFID Diagnostic Card & X Field Detector devices
How/where are x-series chips installed? Aftercare? What to expect?
Our x-series transponders are typically installed into the webbing between the metacarpal bones of the index finger and thumb, resting parallel to the index metacarpal. The reason they are installed in the hand has to do with the extremely short read range of x-series chips and the typical use case being some form of access control where the tag must be presented to a fixed reader of some kind. The suggested placement within the hand was chosen due to the lack of major nerve bundles or blood vessels running through that area.

Achieving a safe installation definitely requires a steady hand and experience performing aseptic procedures. Dangerous Things prefers our customers locate one of our professional body piercing or body modification partners to complete the installation of this product. If no partners are available in your area, you should be able to follow this guide to finding a professional in your area who is willing to assist you. For aftercare information and what to expect, please read our X-Series FAQ page.

Can I get an MRI? What about airport security? Playing sports? etc.
You have questions! That’s understandable. The short answer is; it’s all good. If you’re looking for more specific answers, we have an extensive FAQ page that deals with many of the most commonly asked questions regarding installation of our x-series transponders.
NExT NTAG216 Security
The NTAG216 chip inside the NExT was designed for use in more typical NFC applications such as smart posters, labels, and other disposable use cases where the memory contents would typically be written and then locked so it could not be changed. This is done using built-in “lock bytes” which are OTP (one time programmable). That means that once the lock bytes are turned on to protect memory blocks, they can never be unlocked. Once any memory block is locked, it will forever be read-only, which is not ideal for the NExT. Many NFC applications offer ways to “lock” or “protect” your tag, which will end up locking the tag read-only. Because of this, we have disabled the ability to change or set the lock bits in the NExT’s NTAG216 chip.

Before disabling the lock bytes however, there is one page of user memory we do lock down as read-only. That is the CC or Capability Container, located in memory page 03. This page of 4 bytes is required to have a specific format of data so the tag can be recognized and used as an NFC Type 2 tag. This memory page is also special in that the data stored there uses OTP bits, or “One Time Programmable” bits, meaning once a bit is flipped from 0 to 1, it cannot be flipped back to 0. It is critical that this memory page be locked as read-only so a malicious attacker can’t mess up your Capability Container, thus ruining the chip for use as an NFC compliant transponder. We set lock bytes to mark the Capability Container as read-only, then we disable the lock bytes so no other memory pages can be permanently set as read-only.

In addition to lock bytes, the NTAG216 offers a 32bit password protection function. It can be used to password-protect just writing to or both reading from and writing to the user memory space of the NTAG216 chip. Regardless of what some NFC smartphone apps indicate, it is not possible to remove or disable the password. It is only possible to set the password to the default hexadecimal value of 0xFF 0xFF 0xFF 0xFF. If the password is set to the default value, then anyone could easily authenticate, change the password, then write data or change protection options for your tag, and change the password to some unknown value. Because it is also possible to protect memory blocks from unauthenticated reads using a password, this could make the tag completely useless by not allowing any memory blocks to even be read. We set a default password value of 0x44 0x4E 0x47 0x52 or DNGR, but strongly suggest you change it after installation.

Finally, many of the critical configuration bytes used by the NTAG216 chip are stored in the last few memory pages of the tag. This means that it may be possible for an NFC application that does not properly detect or honor the NExT’s NTAG216 chip memory schema to accidentally attempt to write binary or NDEF record data (the data you’re trying to store on the tag) overtop of the configuration bytes. For example, if the data you are attempting to write is longer than the user memory blocks available, the remainder of the data might be written overtop of configuration bytes, which contain settings that are potentially dangerous to modify such as the config lock byte. It is not possible to disable the configuration lock byte, so accidentally writing to that byte could result in your configuration being irreversibly locked. We password-protect the configuration bytes from being able to be written to or updated using the password feature of the NTAG216 chip. Overall, the NExT leaves the factory with the entire user memory space accessible and writable, while at the same time the configuration bytes and password values at the bottom end of the NTAG216 chip’s memory space are protected.

Once your NExT is installed, you’ll be able to use any NFC smartphone app to write data to the tag and not need to be afraid of accidentally locking the tag, or changing the configuration bytes, or someone maliciously locking your tag or changing your password. We suggest using NXP’s TagWriter app.
